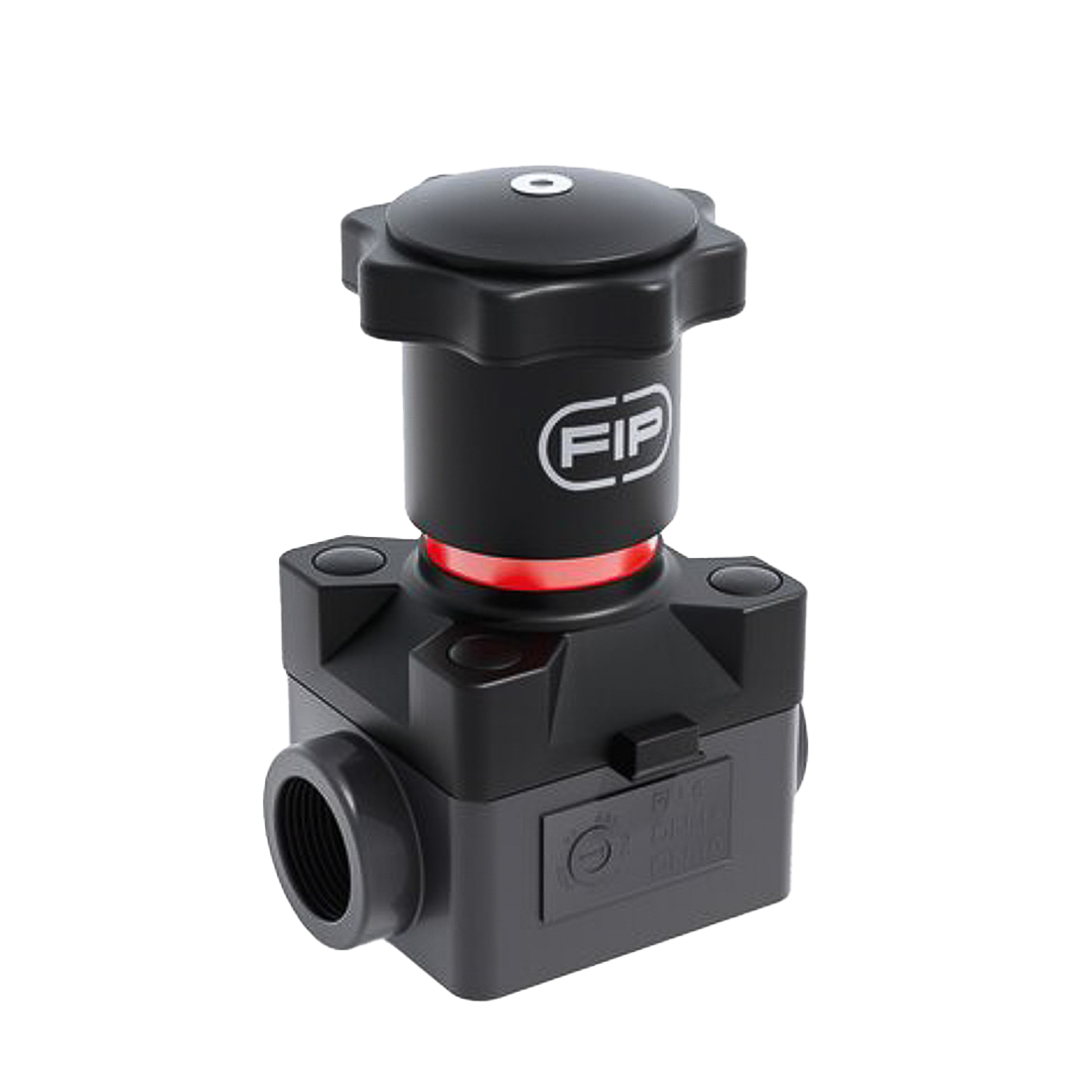

FIP CMFV Diaphragm Valve PVC-U / EPDM PN10 d= 1/2"

descriptions

PVC-U Compact diaphragm valve

Specific Material Description

Hard PVC is a strong and rigid material that has excellent chemical and electrical properties. PVC can be used at temperatures from 0 to 60 ° C. For these reasons, hard PVC is frequently used in all branches of industry.

Technical Description

BSP series threaded female ends

downloads

Scope Statement PVC-U - 181.8 kB
fip-data-sheet-cmfv---compact-diaphragm-valve-dn-12-15.pdf - 233.3 kB
Technical Handbook Fip CM 16-20 PVC-U EN - 304.1 kB

specifications

Color or RAL: Grey RAL 7037

Built in Length mm: 75,00 mm
Diameter inch: 1/2"
Diameter DN (d1): DN15

Material: PVC-U
Delivery Form: Valve
Pressure Rating: PN10
Valve Code: CMFV
Type Valve: Diaphragm Valve
Diaphragm: EPDM
Wall: single walled
Connection Technology Piping: Threaded BSP Internal
Function: Modulating
Possible Application: Liquids
Radially Demountable: no
Standarization: DIN EN 1452, DIN EN ISO 15493, ISO 9393, EN ISO 16138
Valve Control: Manual operated
UV Resistance: Not UV resistant
