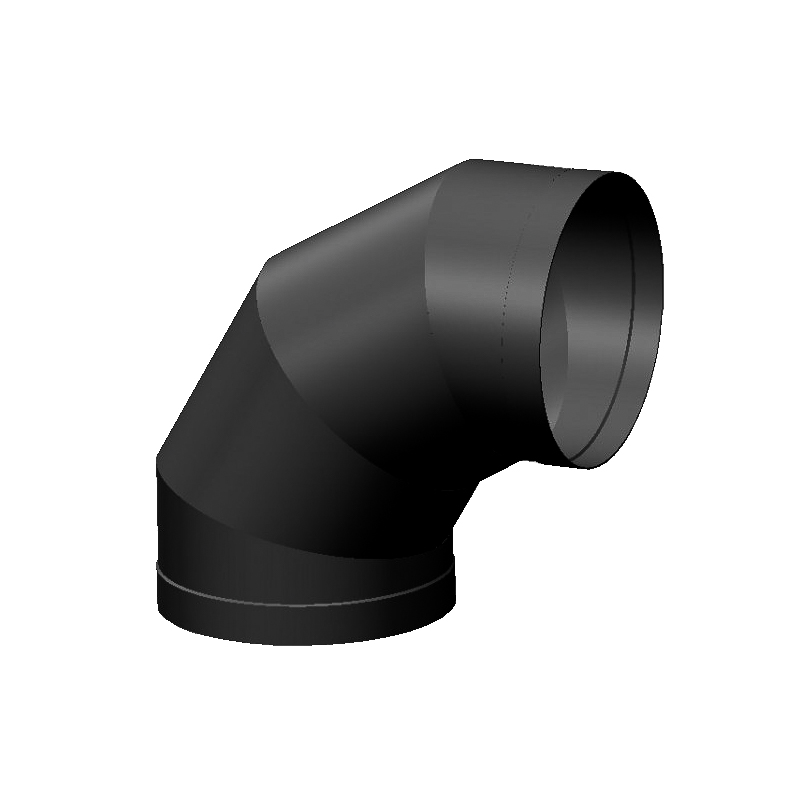

PE100 Segmented bend 90° Black Single Walled Ventilation SBM d=1200 mm

descriptions

In every industry, there is a need for reliable and durable ventilation piping. Besides the excellent chemical resistance, plastic materials have other benefits that are worth mentioning. Thanks to the smooth inner surface, the pressure losses in plastic ventilation piping are reduced by 30% compared with metal piping. This means that the pipes can be smaller or the ventilators less powerfull.

Thanks to their light weight, plastic ventilation piping is easy and less expensive to transport, to install and to support.

Above all, plastics materials guarantee a long, maintenance free service.

Specific Material Description

HDPE100 is a high density polyethylene that is applied in many industrial applications due to its excellent chemical resistance, good abrasion resistance and high toughness.
Its good weldability makes the material suited for construction purposes.
The maximum allowed continuous service temperature is 60 °C.

Technical Description

• Welding sleeves on both ends.
• Suitable for hot gas welding.

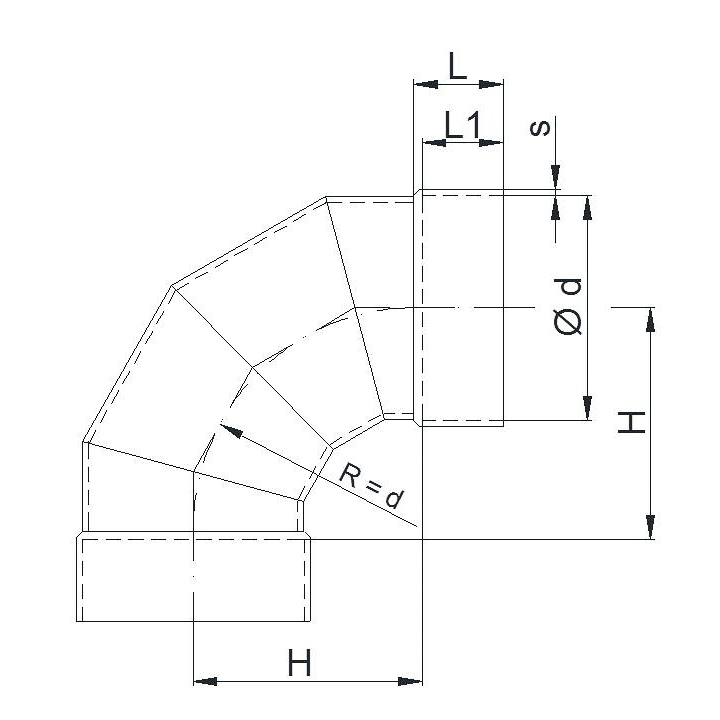

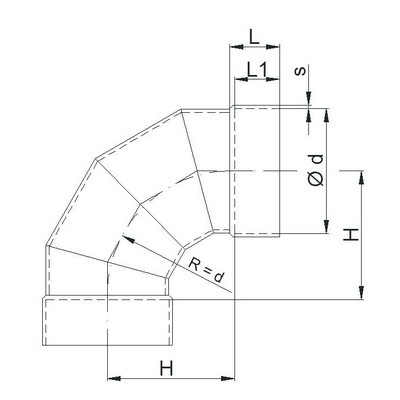

• R = 1 x D.
