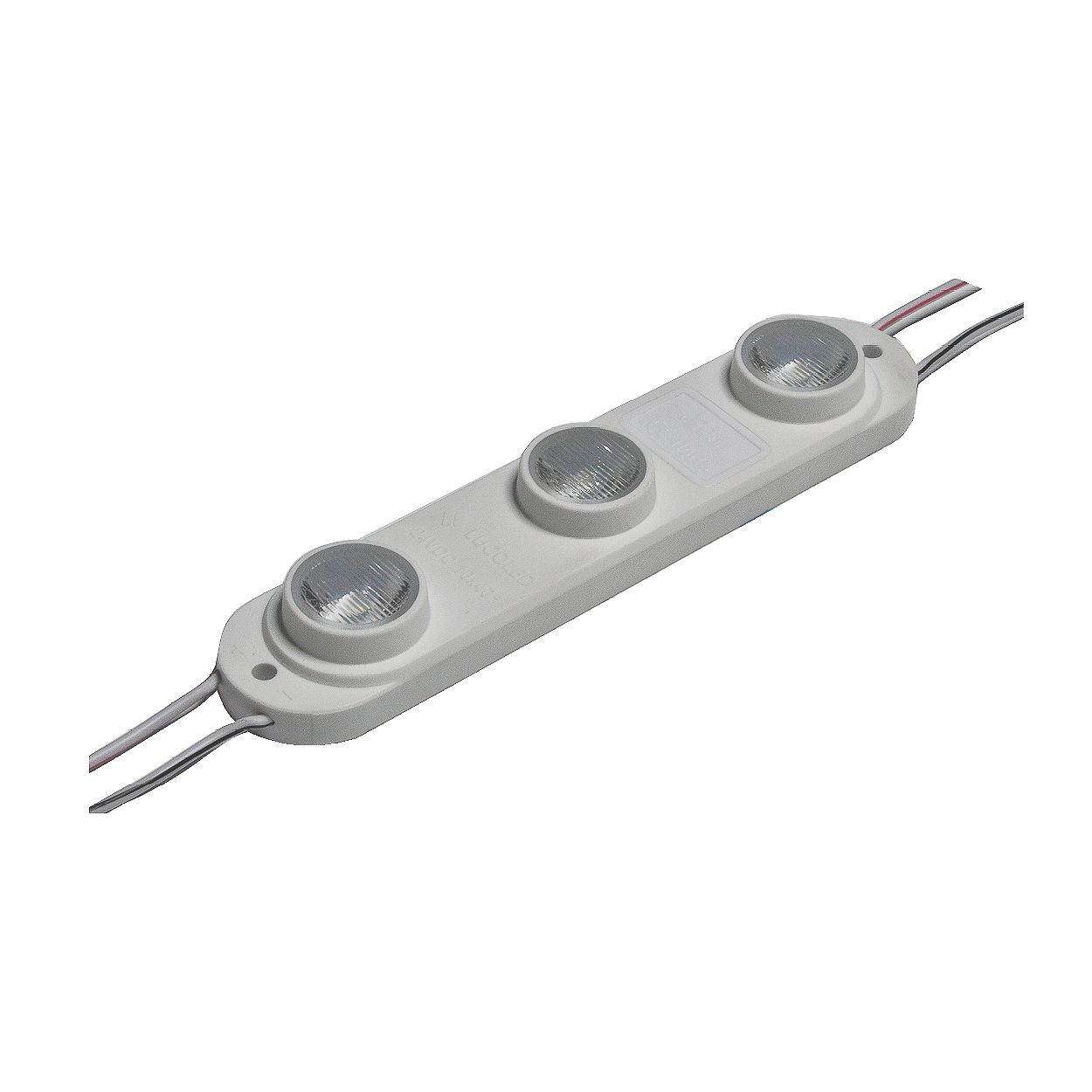

Lucoled EL37-W60 6500K 24V

descriptions

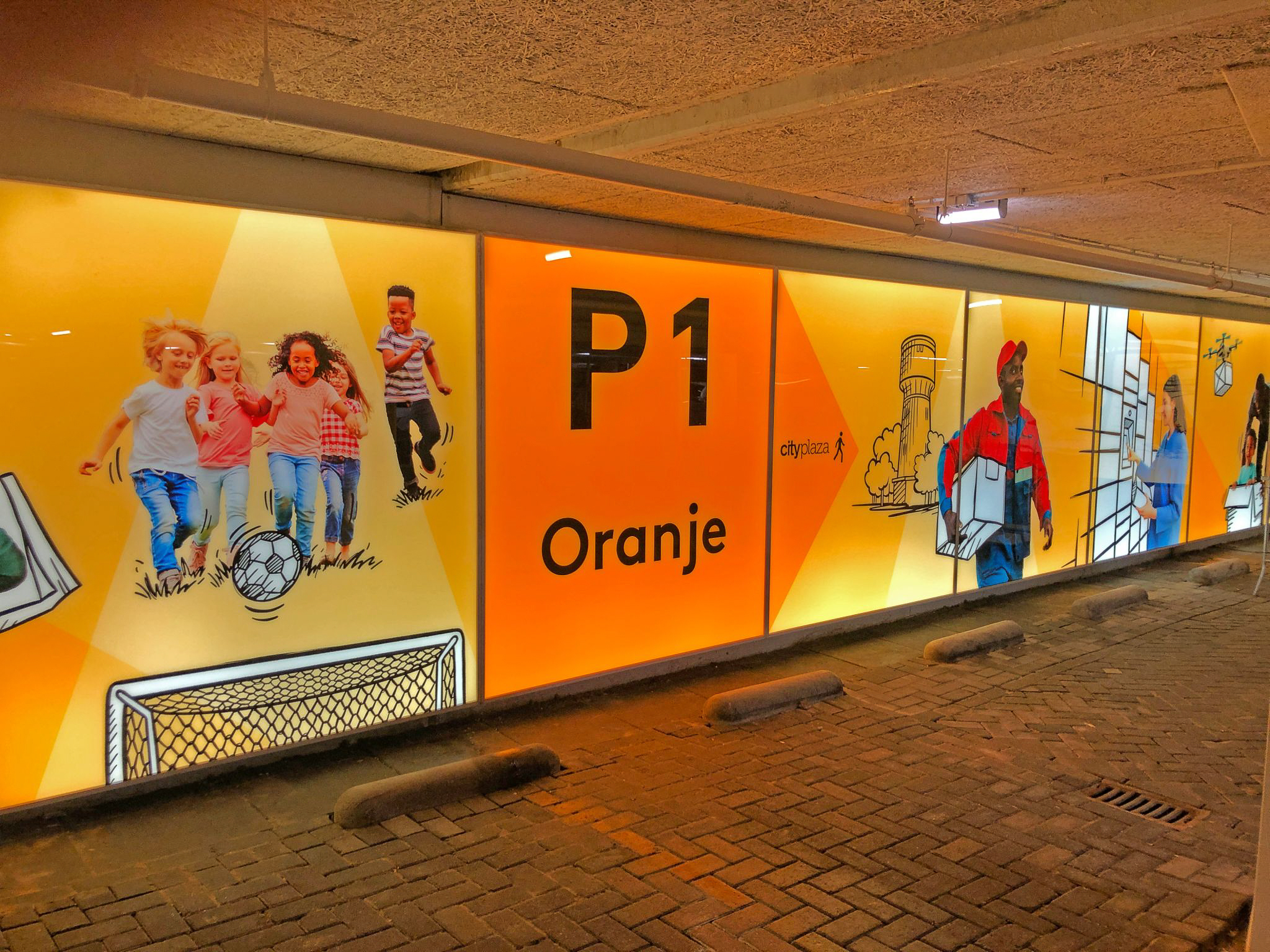

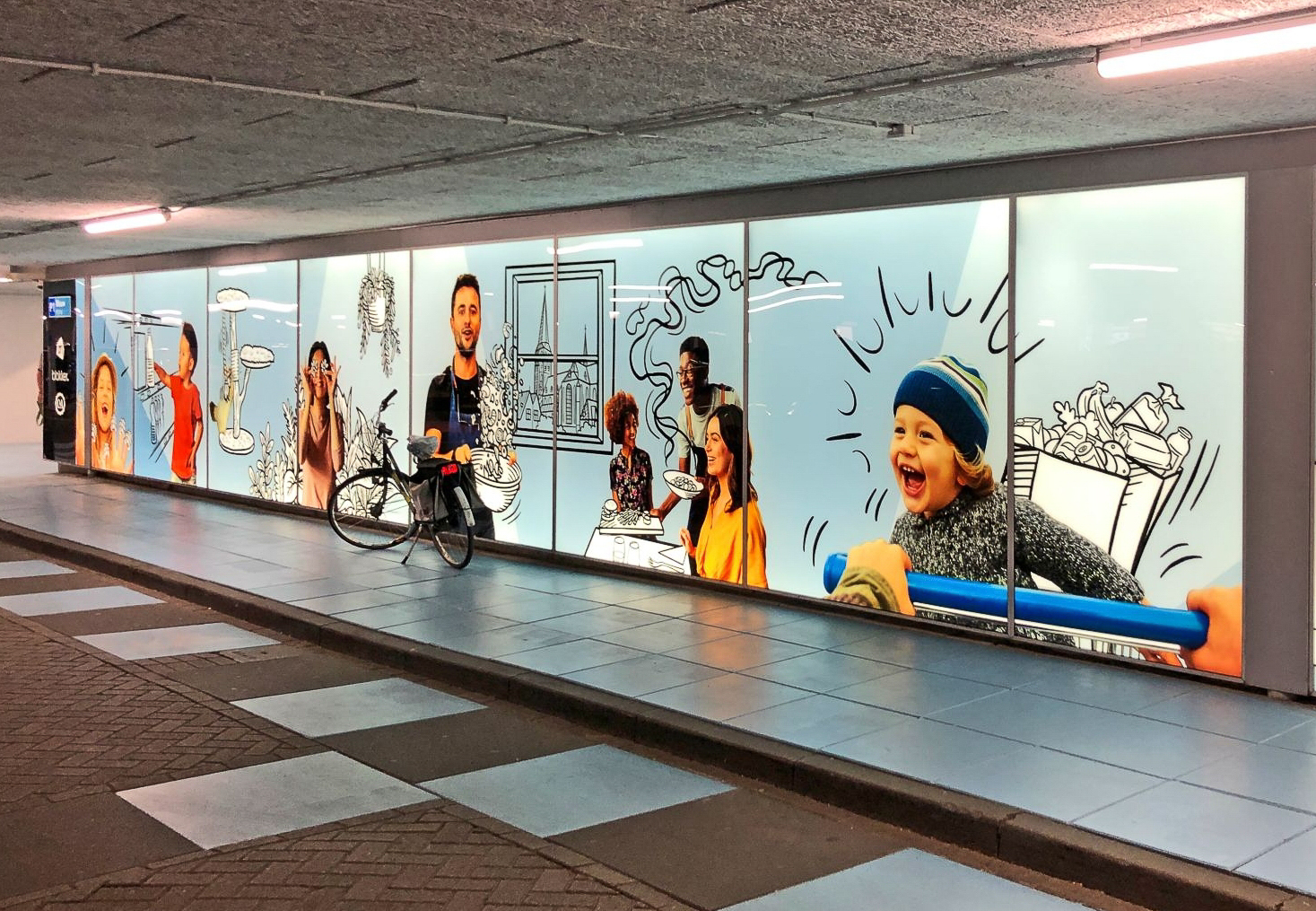

Lucoled Edge Lighting EL37 modules offer a high quality and efficient solution for single-sided lightboxes with a depth of 100-120 mm and double-sided lightboxes with a depth of 100 -180 mm, max. 3000 mm wide.

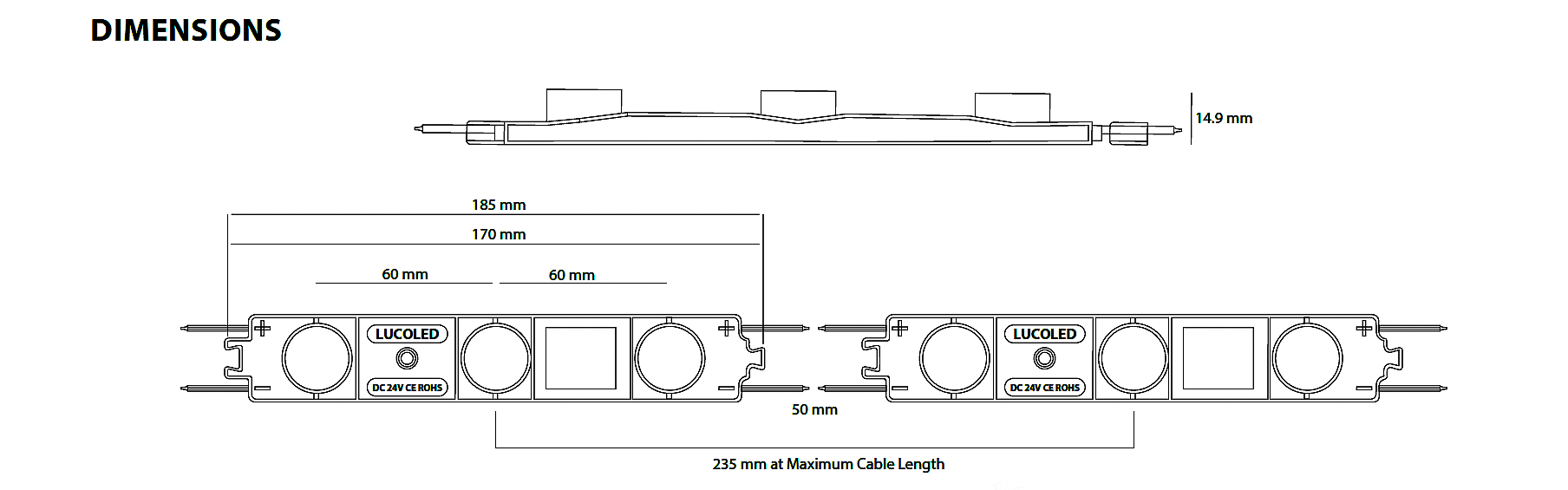

Lucoled EL37 has a unique jigsaw connection system allowing the modules to be connected in such a way that a uniform LED spacing is achieved.
Lucoled EL37 uses patented light reflection technology to evenly illuminate single and double-sided large format light boxes. The licensed technology is based on the face being illuminated by over 70% indirect, internally reflecting, light transmitteed by narrow beam flare lenses. The modules are mounted on the sides of the box, directing a beam of light at the opposite side.

EL37 is ideal for large size rectangular shaped signs. The individual modules are normally
positioned on opposite sides on the longest side of the sign.

Technical Description

• Lucolense narrow beam technology
• High efficacy
• For illuminating 3m wide lightboxes
• Warranty 5 years

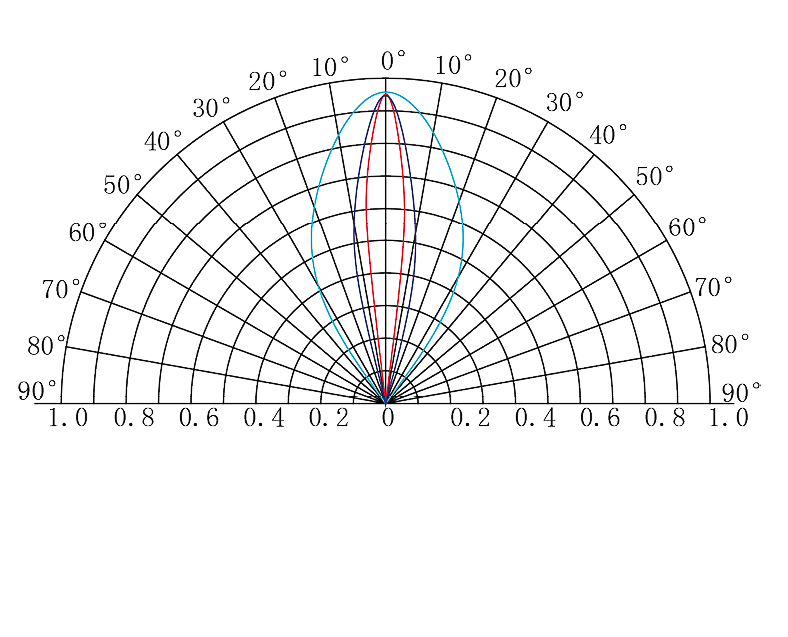

• Beam angle: 10° * 40°
• Can be cut between every unit
• UL, CE and RoHS compliant
• Narrow white binning
• Constant Current Technology
• Operating temperature -25~+60C
